Polyester membrane

Description Specifications

CFP Series Pleated Polyester Depth Media Filter Cartridges offers an efficient and economical filtration option with broad applications. The all-polyester construction allows higher temperature use (up to 120℃). The 2.6” or 2.7” OD allows use in housings where larger cartridges do not fit.

Manufactured in a clean room environment to maintain high standards of purity and cleanliness.

Features

• Increased surface area due to pleated design

• High temperature resistance

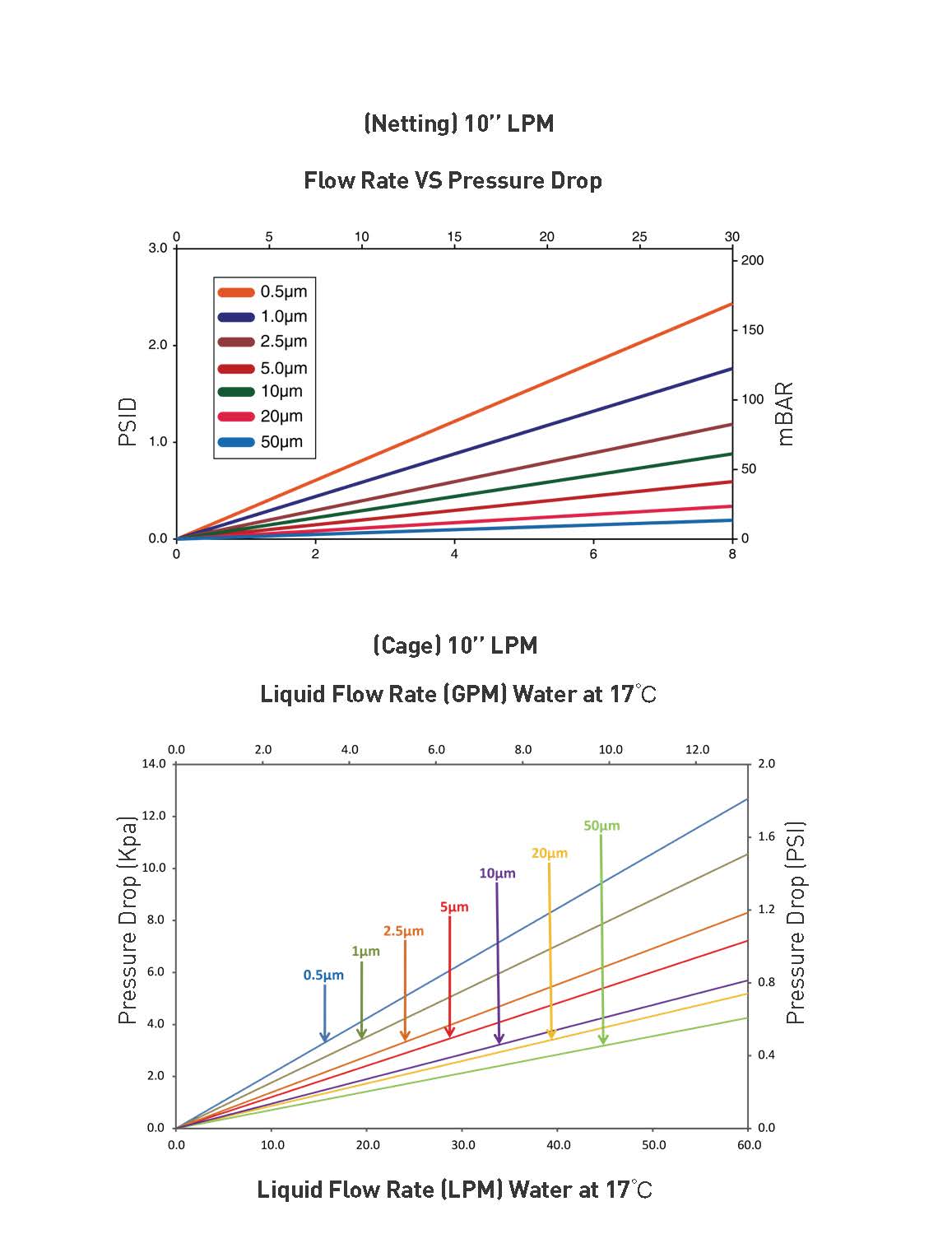

• High flow rate and low-pressure drop

Applications

• Process Water

• Solvents

• Fine chemicals

• Plating Chemicals

• Wastewater

• Produced water

• Hydrocarbons

• Synthetic Lubricants

Dimension

Out Diameter 66mm(Netting), 69mm(Cage)

Length 10”, 20”, 30”, 40”

Performance

• Max Operating Temperature: 120℃(248℉)

• Max Operating DP: 4 bar(58psi)@20℃(68℉)
